Overview

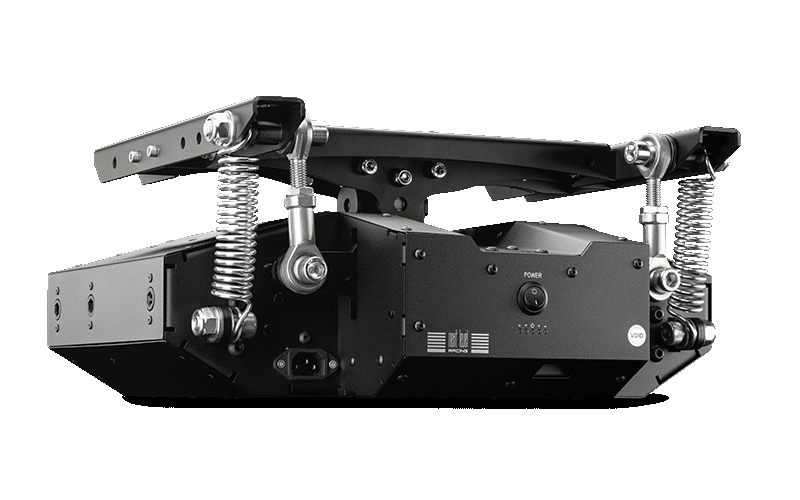

The Next Level Racing® Motion Platform V3 is engineered with world‑leading European motion and software expertise for unmatched reliability and immersive performance in sim racing and flight setups.
Key Features:
- Precision-engineered for quiet and compact operation.
- Delivers smooth pitch and roll degrees of freedom (here-to mentioned as DoF).
- Seamlessly integrates with popular simulation titles and VR set-ups.
- Streamlined software control via the Platform Manager.
System performance
Max Angular Displacement for Pitch & Roll:
-10.0°, 10.0°
Max Speed:
20°/s
Storage temperatures:
+4°C to +45°C
Max Angular Displacement for Pitch & Roll:
-10.0°, 10.0°
Max Speed:
20°/s
Storage temperatures:
+4°C to +45°C
Full performance temperatures:
+5°C to +35°C
Payload specification;
Min user weight:
30 kg
Max user weight:
130 kg
Product weight:
28 kg
Main dimensions:
Total width;
350 mm
Total height:
200 mm
Total length;
460 mm
Power requirements:
Power source:
4A/115VAC, 2A/230VAC
Rated power:
321 W
Inrush current:
20A/115VAC, 40A/230VAC
Protection class:
1
Built-in Power Supply Specification:
Active PFC function Protections:
Short circuit/Overload/Over voltage/Over temperature
Compatibility:
Engineered for out of the box use with the following Next Level Racing Cockpits:
- GTUltimate (*Discontinued)
- GTTrack
- F-GT Elite and Elite 160 Series Cockpits
- Flight Simulator Pro (note that Flight Seat Pro and Flight Stand Pro need to be attached for compatibility)
Compatible with the below Next Level Racing Cockpits when using the Elite Motion Adaptor Upgrade Kit:
-
Software Downloads – Available from the Next Level Racing Support Downloads page. You’ll need your product serial number to access.
[Software Download Page]
Setup and Installation (Summarised)
- Review safety guidelines in the manual.
- Install using installed side panels and bolts, see manual section “Motion Platform Installation” (Installation Video).
- Connect power and USB, plug platform into PC. Turn on power via the rocker switch on the front panel.
- Install Platform Manager Software from our Downloads Page and run the Install Wizard. Once installed, the action centre in Platform Manager will prompt calibration and set-up needed on initial start-up.
- Once all items in the action centre have been resolved; activate the Game Profile you would like to utilise with your Motion Platform.
FAQ
- What is the maximum supported weight? Up to 130 kg (285 lb) Seat and User weight combined.
- Where do I download the user manual? A: Available online via the Motion V3’s product page; or via the following link: Instructional Manual
- Where can I get software and firmware? The Software is available from the official Next Level Racing Support Downloads page; serial number required [Downloads Page]. The Firmware for your unit is available through the Platform Manager Software.
- Where’s a good installation guide? Watch the assembly video embedded below or follow the manual step-by-step (Guide Link).
Troubleshooting Highlights
- Not recognized by PC: Ensure power and USB are securely connected, ensure the USB Port is clear from debris, attempt using a different USB cord. If still not recognized, please reach out to our Motion Support Team (motion.support@nextlevelracing.com).
- Jerky motion: Reduce your Profile’s Sharpness parameters inside Platform Manager.
- Firmware update failure: Retry via Platform Manager; contact support if persistent (motion.support@nextlevelracing.com).
- No Motion: Test with no Telemetry reading programs running in the background (close through Task Manager - CTRL + SHFT + ESC). If motion resumes, you will need to set-up UDP Proxy/Forwarder; steps can be found in PLATFORM MANAGER à HELP & TUTORIALS à 4th SECTION DOWN.
Instructions Guide & Video Links:
- Instructions guide: [PDF Version]
-
Assembly Video:
