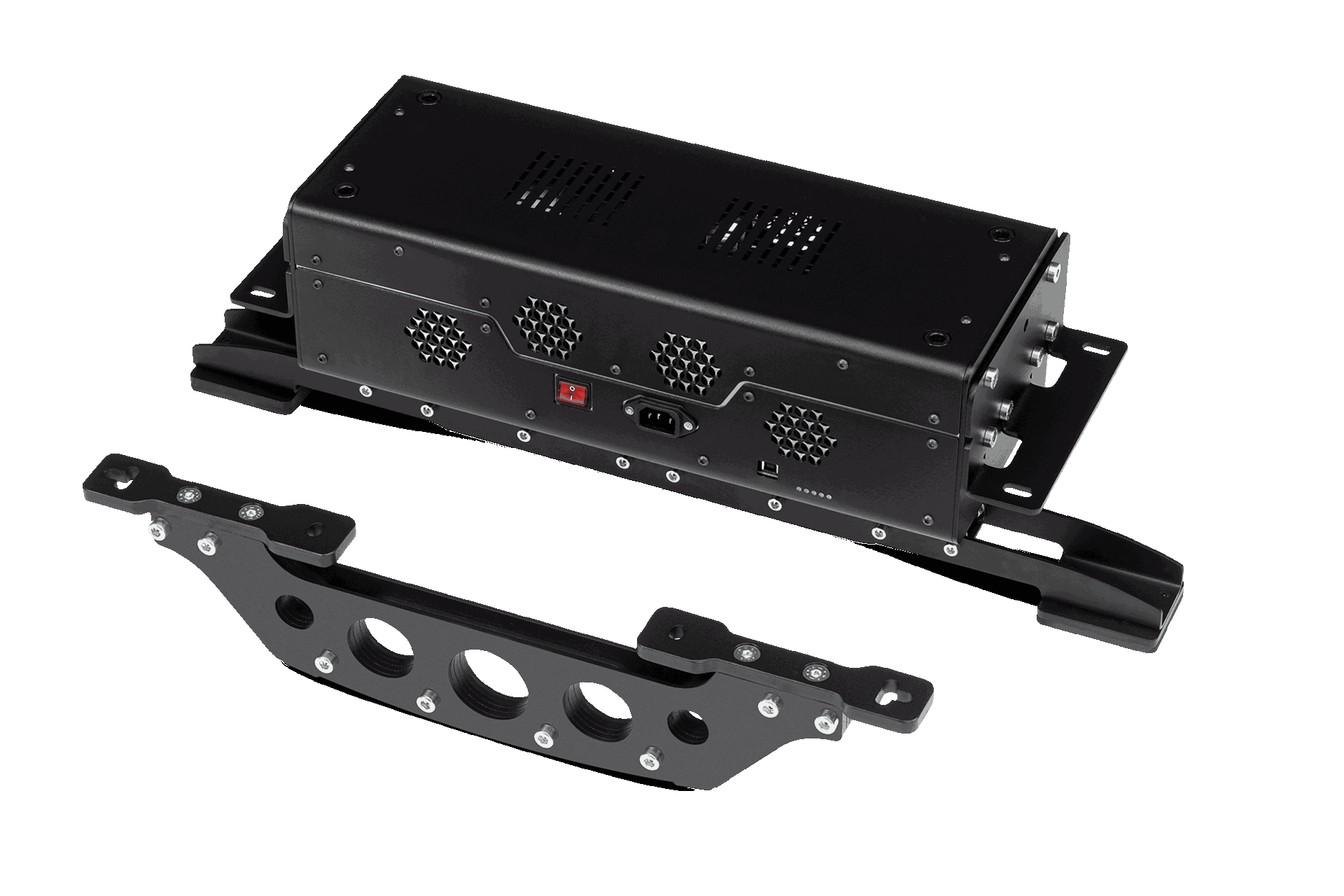

Motion Plus Platform (NLR-M007)

Overview

The Next Level Racing® Motion Plus Platform is a compact full-cockpit mover that delivers immersive chassis-level motion across pitch, roll, and partial heave with one unit and full heave with two, elevating realism in racing and flight simulation setups. Engineered in Europe with advanced magnetic-encoder technology, it translates in-game telemetry into precise motion feedback such as bumps, cornering, acceleration, and gear shifts

Key Features

• Full-cockpit motion simulation with pitch, roll, and heave effects (2 DOF for single, 3 DOF for dual-unit configurations)
• High precision via magnetic encoders and ultra-low latency response.
• Seamlessly integrates with the Next Level Racing ecosystem—compatible with Motion V3, Traction Plus, and supported cockpits.
• Customizable through Platform Manager software, including VR Headway for smoother VR motion
• Quick installation—set up and ready in under an hour
• Built for both home and commercial use with durable, professional-grade components

Specifications:

• Maximum Payload (cockpit + user + accessories): 250 kg (550 lb)
• Motion Capabilities: Roll Velocity up to ~21 °/s; Braking & Acceleration up to ~8 °/s
• Performance: 4000 microprocesses per second for accurate motion
• Power Input: 321 W ; 4A/115VAC/60Hz, 2A/230VAC/50Hz
• Operating Temperature: 4 °C – 45 °C (39 °F – 113 °F)
• Product Weight: 21.7 kg (48 lb) with pivot bar
• Product Dimension: 70 x 18.2 x 20 cm or 27.6 x 7.2 x 7.9 inches

Compatibility

Engineered for use with the following Next Level Racing cockpits out of the box:

• GTTrack
• Elite Series Cockpits
• GTSeat Add-On (when attached to the Wheelstand 2.0)
• Flight Simulator Pro (Flight Seat Pro + Flight Stand Pro) without adapter kits.

Compatible with the following cockpits when using the Motion Adapter Frame:

• Flight Simulator Cockpits,
• F-GT
• F-GT Pro

Fully compatible with Motion Platform V3 for expanded DOF setups.

Supports virtually all major racing and flight titles via the Platform Manager Software.

• Software Download
  Available from the Next Level Racing Support Downloads page. You’ll need your product serial number to access.
  [Software Download Page]

Setup and Installation (Summarised)

1. Review safety guidelines in the manual.
2. Install using installed “L-Bracket” (if necessary; according to the instruction manual) and bolts, see manual section “Motion Platform Installation”.
3. Connect power and USB, plug platform into PC. Turn on power via the rocker switch on the front panel.
4. Install Platform Manager Software from our Downloads Page and run the Install Wizard. Once installed, the action centre in Platform Manager will prompt calibration and set-up needed on initial start-up.
5. Once all items in the action centre have been resolved; activate the Game Profile you would like to utilise with your Motion Platform.

FAQ:

1. What movement does the Motion Plus simulate?
   It provides pitch, roll, and partial heave (2-DoF) motion using a single unit, with full heave achievable by adding a second unit (3-DoF). It delivers dynamic and realistic movement for both racing and flight simulation.
2. Is it plug-and-play?
   Yes, it includes the Next Level Racing Platform Manager for easy setup and calibration with many integrated racing and flight gaming titles.
3. What is the maximum support payload?
   Up to 250 kg (cockpit + user + accessories).
4. Is it VR compatible?
   Yes, it includes VR compensation via Platform Manager (VR Headway). Set-up steps can be found within Platform Manager’s Help & Tutorials section.

Troubleshooting

• Not recognized by PC: Ensure power and USB are securely connected, ensure the USB Port is clear from debris, attempt using a different USB cord. If still not recognized, please reach out to our Motion Support Team (motion.support@nextlevelracing.com).
• No Motion: Test with no Telemetry reading programs running in the background (close through Task Manager - CTRL + SHFT + ESC). If motion resumes, you will need to set-up UDP Proxy/Forwarder; steps can be found in PLATFORM MANAGER - HELP & TUTORIALS - 4th SECTION DOWN.

Inverted or Unnatural Motion: If using a Dual Set-up; please ensure that the Front and Rear Motion Plus units have been configured and assigned correctly: PLATFORM MANAGER - TOOLS and DIAGNOSTIC - SOFTWARE CONFIGURATION

Instructions Guide & Video Links:

• Instructions guide: [PDF Version]

• Assembly Video:
