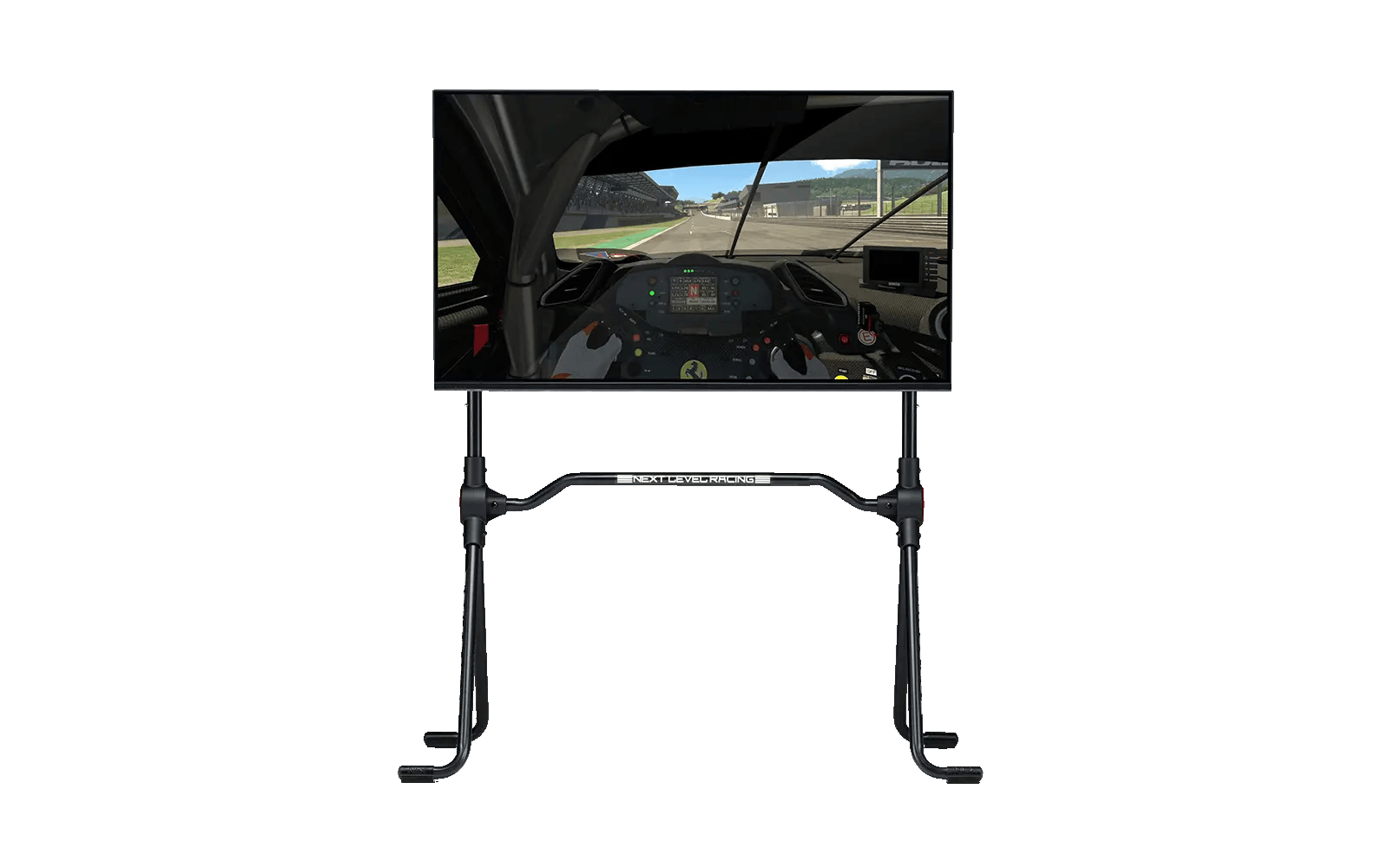

Product Overview:
Introducing the Next Level Racing® Lite Free Standing Monitor Stand, designed for the Lite Series cockpits. Complete the simulation experience with the addition of the Lite Free Standing Monitor Stand. Designed for the user with limited space, the Lite Free Standing Monitor Stand takes a minimal footprint and is lightweight for easy transport from one location to the other. To suit different users’ categories of racing, the Lite Free Standing Monitor offers height and tilt adjustability for optimal positioning. The Lite Free Standing Monitor Stand is also compatible with the Next Level Racing® cockpit category as a free-standing solution.
Leading Features:
-
The Next Level Racing® Lite Free Standing Monitor Stand is versatile and compact for users with limited living space. With a lightweight design, the Lite Free Standing Monitor Stand can be transported from room to room for either your simulation experience or daily use with ease. Similar to the Lite Cockpit range, the Lite Free Standing Monitor Stand is constructed with carbon steel tube and glass-filled Nylon plastic for extra strength and durability. The Lite Free Standing Monitor Stand is compatible with a wide range of Next Level Racing® racing cockpits, flight cockpits, wheel stands, and third-party cockpits*.
*For measurements, please check the adjustability section.
- The Lite Free Standing Monitor Stand allows the user to place their screen/monitor at the ideal height and angle for the most immersive simulation experience. The Lite Free Standing Monitor Stand can be positioned and angled directly behind the racing peripherals attached to the GTLite or the F-GT Lite cockpit in either the GT or Formula position for an authentic racing experience. With a wide range VESA mounting pattern from 75mm X 75mm to 400mm X 400mm, allowing users to attach a screen/monitor up to 55”.
Specifications:
- Supported Screen Sizes: Up to 55” monitors/screens
- Max Supported Weight: 20 kg or 44 lbs
- Construction Materials: Solid construction with carbon steel tube and glass-filled nylon plastic for extra rigidity
- Inner Distance Clearance: 790mm or 31.1 inches
- Adjustable Parameters: Height, width, angle, and tilt for most branded monitors
- Product Dimensions (max): 105cm (L) x 57.5cm (W) x 116cm (H)
- Product Dimensions (min): 105cm (L) x 57.5cm (W) x 103cm (H)
- Boxed Dimensions: 135cm (L) 33cm (W) 13.5 cm (H) 53.1 inches(L) 12.9inches(W) 5.3 inches(H)
- Product Weight: 5.66 kg or 12.5 lbs
- Boxed Weight: 8.44 kg or 18.6 lbs
Adjustments:
FAQ:
Q: What monitor sizes are supported?
The stand supports a single monitor up to 55 inches, accommodating various screen sizes for immersive simulation experiences.
Q: Is the stand adjustable for optimal viewing?
Yes, it offers height and tilt adjustments, allowing users to position their monitor for the best viewing angle during gameplay.
Q: What VESA mounting patterns are compatible?
It supports a range of VESA mounting patterns from 75 x 75 mm to 400 x 400 mm, ensuring compatibility with most monitors.
Q: Is the stand portable and space-efficient?
Absolutely. Designed with a compact and lightweight structure, it’s easy to transport and ideal for setups with limited space.
Compatibility:
Next Level Racing® F-GT Lite Cockpit/s
Next Level Racing® GTLite Cockpit/s
Next Level Racing® GTLite Pro Cockpit/s
Next Level Racing® Formula Lite Pro Cockpit/s
Next Level Racing® Victory Cockpit
Next Level Racing® GTRacer 2.0
Next Level Racing® Wheel Stand Range (WS 2.0, WS Lite 2.0)
Next Level Racing® Flight Simulator Range

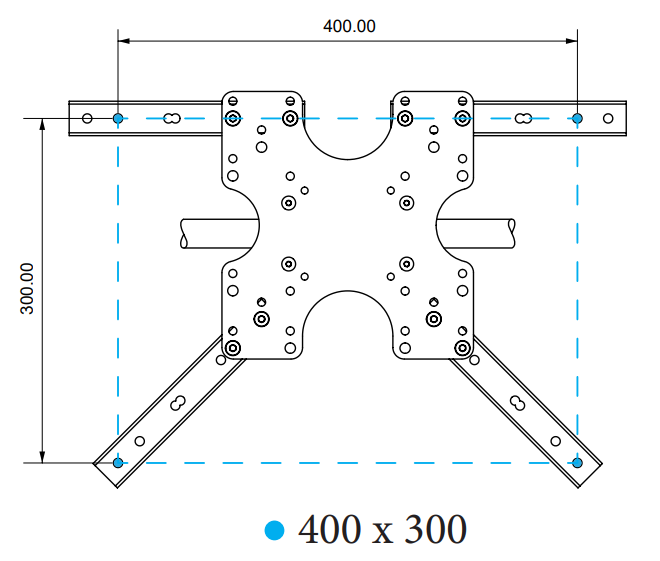

Vertical VESA Brackets Mounting Dimensions (mm) Listed As: ‘Horizontal’ x "Vertical’
- 75x75
- 100x100
- 150x150
- 100x200
- 200x100
- 200x200
-
400x400
Instructions Guide & Video Links:
- Instructions guide: [PDF Version]
-
Assembly Video:
