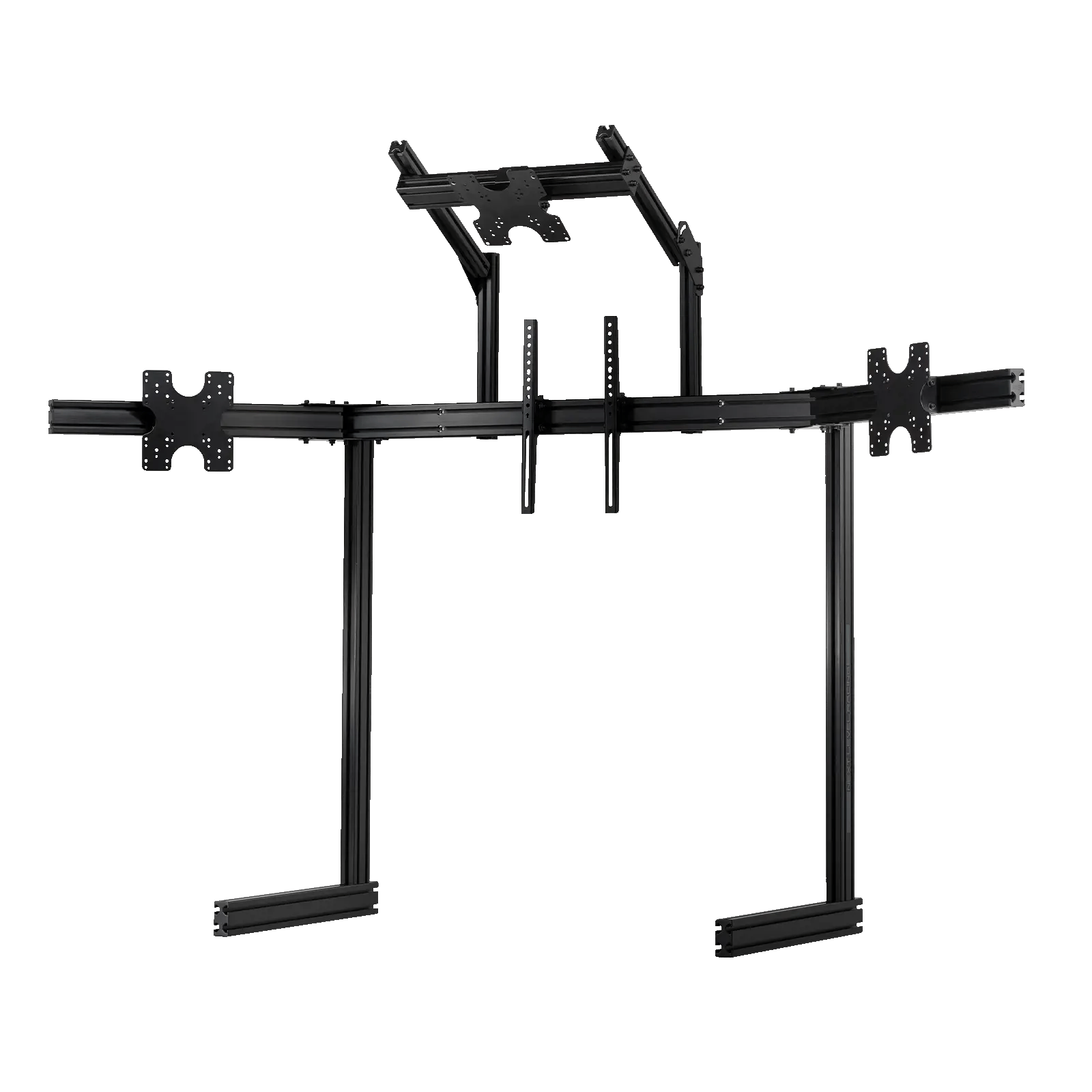

Elite Freestanding Quad Monitor Stand – Black Edition (NLR-E037)

Product Overview:

Leading Features:

• A product from years of extensive research and development, the Next Level Racing® Elite Freestanding Quad Monitor Stand offers an unparalleled immersive experience to sim racers, surrounding drivers with three surround monitors and an overhead screen, whilst offering a high degree of adjustability. The vertical uprights are also width adjustable, allowing users with the Next Level Racing Traction Plus platforms or wider cockpits to bring the screens closer to their seated position to find the desired field of view

  Freestanding design allows preferred screen distance and vertical post mount points (from 720 – 1240mm wide) allows width required for universal compatibility for racing/flight cockpits and commercial applications



• From the anodised black finish to the custom black electroplated hardware and cable management clips, the Elite Freestanding Quad Monitor Stand offers industry-leading versatility and quality standards for the perfectionist sim racer.

• Universal 3mm thick VESA mounting solutions included for maximum compatibility and flexibility (• 200x200mm • 100x200mm • 200x100mm • 150x150mm • 100x100mm • 75x75mm)

Specifications:

• Supported Screen Sizes: 21″ to 43″ monitors, up to 4 in total: three surround + one overhead
• Construction Materials: High-grade 6063 aluminum extrusion with anodised black finish, plus powder-coated carbon steel components
• Width Adjustability: Adjustable between 720 mm and 1240 mm—compatible with all NLR cockpits, wheel stands and other wider bases cockpits
• Adjustable Parameters: Height, width, angle, and tilt for most branded monitors
• Dimensions Assembled size: 71 cm (L) × 242.5 cm (W) × 200 cm (H) (28″ × 95.5″ × 78.7″)
• Boxed Dimensions: 135 cm (L) × 40 cm (W) × 24.5 cm (H) (14.4″ × 13.3″ × 7.1″)
• Product Weight : ~31.3 kg (69 lb); Boxed: ~33.5 kg (73.9 lb)

Adjustments:

• Vertical Positioning: 600 mm of height adjustment ensures the display can be optimally aligned with your line of sight.
• Width Flexibility: Inputs can be aligned closer or wider to suit cockpit width, thanks to adjustable upright spacing (720–1240 mm).
• Fine-Tuning Tools: Includes a spirit level for perfect setup alignment and cable management clips to keep your stage clean and immersive.

FAQ:

Q: What is the purpose of this stand?
This stand provides a comprehensive solution for mounting four monitors—three in front and one overhead—enhancing immersion for sim racing and flight simulation setups.

Q: Is it a standalone product or does it require additional components?
It is a standalone product that does not require any additional components for quad monitor support.

Q: What monitor sizes and VESA patterns are supported?
The setup supports four monitors ranging from 21” to 43”. It includes three star-shaped VESA mounts compatible with the following patterns: 75mm (H) x 75mm (L) – 200mm (H) x 200mm (L).

Additionally, it features one set of upright VESA mounts supporting a wide range of mounting patterns, including: 75mm (H) x 75mm (L) – 800mm (H) x 400mm (L).
This allows for broad compatibility with various monitor sizes and mounting standards.

Q: Is the stand adjustable?
Yes, it offers height, width (720mm to 1240mm), angle, and tilt adjustments to accommodate various monitor setups and user preferences.

Compatibility:

All Next Level Racing Cockpits; and many Third Party Cockpits

Vertical VESA Brackets Mounting Dimensions (mm) Listed As: ‘Horizontal’ x "Vertical’

• 800x400
• 600x400
• 400x400
• 300x400
• 400x300
• 400x200
• 200x400
• 300x300
• 300×200
• 200x300
• 200x200
• 100x200
• 200x100
• 150x150
• 100x100
• 75x75

Square VESA Bracket Mounting Dimensions (mm) Listed As: 'Horizontal' x 'Vertical'

• 200x200
• 100x200
• 200x100
• 150x150
• 100x100
• 75x75

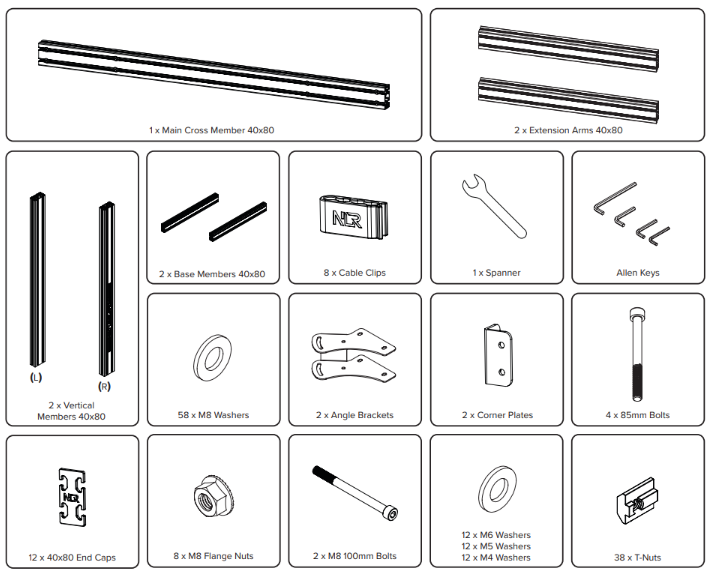

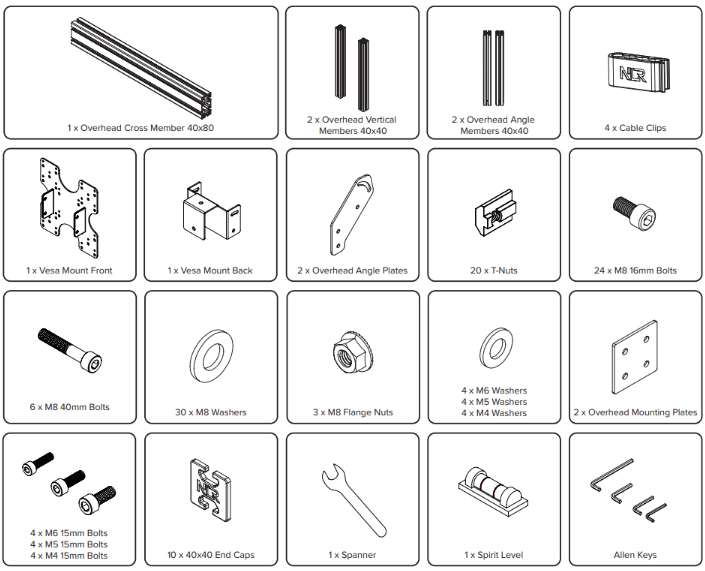

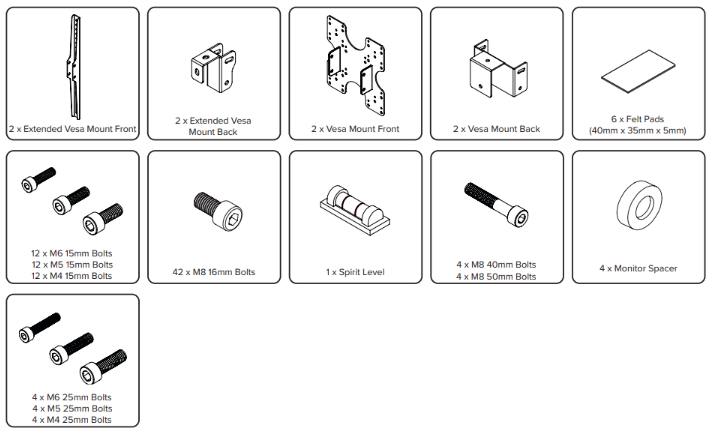

WHAT'S IN THE BOX:

Instructions Guide & Video Links:

• Instructions guide: [PDF Version]
