RC - Foldable (NLR-R017)

Product Overview:

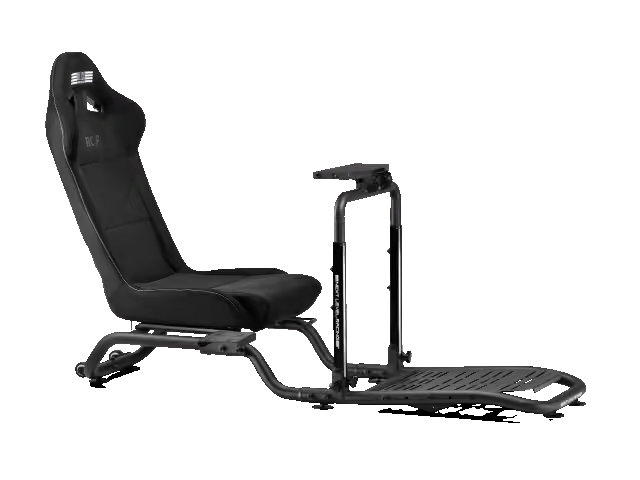

The Next Level Racing® RC Foldable Simulator Cockpit (RC F) sets a new benchmark as the strongest foldable cockpit in the market and the first foldable cockpit to feature a proper dedicated racing seat.

Built to deliver full cockpit performance with the convenience of folding storage, the RC F brings a new level of strength, comfort, and immersion to the foldable cockpit category. Its high-strength Ø38mm tubular steel frame, dedicated GT-style racing seat, included seat sliders, and Direct Drive support up to 13Nm** give racers the confidence of a true cockpit experience.

Developed as an Official FIA Licensed Product, the RC F combines full adjustability, SIMAERO Mesh comfort, transport wheels, and vertical storage capability into one complete foldable solution.

Leading Features:

Designed to suit a wide range of users, the RC F features a fully adjustable wheel deck, pedal plate, and included shifter plate for a tailored racing position. The ergonomic GT-style seat, built with breathable SIMAERO Mesh, synthetic suede, and integrated seat sliders, ensures long-session comfort and quick adjustments. Whether you're racing casually or competitively, the RC F delivers a personalised and immersive driving experience.
Unlike typical foldable cockpits, the RC F is built with a reinforced Ø38mm tubular steel frame that delivers exceptional rigidity under load. Designed to support Direct Drive wheelbases up to 13Nm**, it provides the stability required for precision racing inputs, braking performance, and long-term durability. This makes it one of the strongest folding solutions available, giving racers confidence to push their setup further.
The RC F features a seamless folding mechanism that allows the cockpit to be quickly compacted for storage. With integrated rear wheels and the option to store vertically in a closet or against a wall, users can easily move and store their cockpit without disassembling their setup. Ideal for home environments where space is limited, the RC F saves valuable space without sacrificing a full racing experience.
The RC Foldable features an adjustable wheel deck and pedal plate, allowing racers to tailor their driving position for greater comfort and control. A dedicated shifter support is also included, allowing a compatible shifter to be mounted directly to the cockpit, while the included seat sliders provide further adjustment to the overall driving position.

Specifications:

Supported Height: 130 cm – 200 cm or 4’3″ – 6’7″
Supported Max Weight: 150 kg or 331 lbs.
Tested Wheelbase Torque: Up to 13Nm**
Product Dimensions: (L) 161 cm x (W) 69cm x (H) 99.5cm / (L) 63.4 inches x W 27.2 inches x H 39.2 inches
Box Dimensions: 87 cm (L) × 55.5 cm (W) × 42 cm (H) / 34.3 in (L) × 21.9 in (W) × 16.5 in (H)
Product Weight: 25.5 kg or 52.2 lbs.
Boxed Weight: 30.9 kg or 68.1 lbs
Part Number – NLR-R017

** This product has been tested with wheelbases up to the stated Nm rating. Users may install higher-torque wheelbases based on their requirements; however, performance and stability may vary depending on wheelbase settings, mounting position, and usage conditions.

FAQ:

Q: What is the difference between the RC Foldable and the Victory Simulator Cockpit?

While the RC Foldable shares some visual similarities with the Victory Simulator Cockpit, the frame and overall construction have been redesigned specifically around the RCF's folding, storage and transport capability.

Most importantly, the RCF is the strongest foldable cockpit on the market. There is no other product in this category that offers the same combination of cockpit strength, a dedicated racing seat and true folding capability.

The RCF has been designed to fully collapse when not in use and can be stored vertically using the included wall mount kit. It also features integrated rear transport wheels, making it easy to roll the cockpit from one room to another or move it into storage without needing to carry or completely disassemble your setup.

The seat construction is also different. The RCF seat has been specifically designed to work with the folding system, allowing the cockpit and seat to collapse into a compact position for storage. It features breathable SIMAERO Mesh and synthetic suede, compared with the Victory's PU leather and synthetic racing suede construction.

So, while the two products may appear similar visually, the RCF has been purpose-built around strength, folding, portability and storage, making it a completely different solution for racers who need to maximise their space.

Q: How big and heavy is the RC Foldable?

When fully assembled for racing, the RC Foldable measures approximately 161cm long × 69cm wide × 99.5cm high and weighs approximately 25.5kg.

Q: How much Direct Drive torque can the RC Foldable handle?

The RC Foldable has been tested with Direct Drive wheelbases up to 13Nm. Higher-torque wheelbases may be installed depending on your requirements; however, performance and stability can vary depending on wheelbase settings, mounting position and usage conditions.

Compatibility:

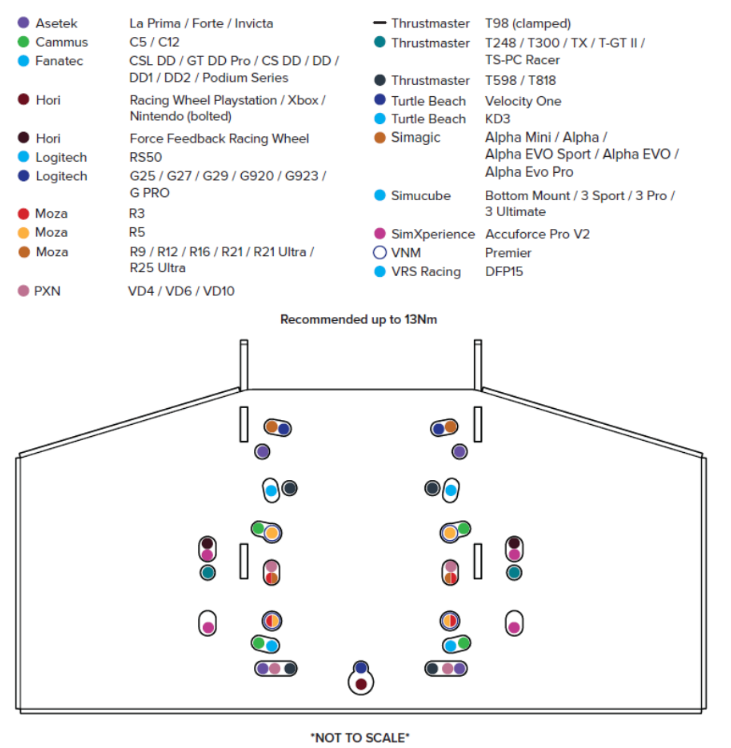

Wheelbases:

Asetek La Prima / Forte / Invicta
Cammus C5 / C12
Fanatec CSL DD
Fanatec Gran Turismo DD Pro
Fanatec CS DD
Fanatec DD1 (Legacy) / DD2 (Legacy)
Fanatec Podium DD1 /DD2
Fanatec Podium DD
HORI Nintendo / PS5 / Xbox
Logitech RS50
Logitech G25 (Legacy) / G27 (Legacy)
Logitech G29 / G920 / G923
Logitech G Pro
Moza R3 / R5 / R9 / R12 / R16 / R21
Moza R21 Ultra / R25 Ultra
PXN VD4 / VD6 / VD10
Simagic Alpha EVO / Sport / Pro
Simagic Alpha Mini
Simagic Alpha
Simagic M10
SimXperience AccuForce Pro V2
Simucube 3 Sport / Pro / Ultimate
Thrustmaster T-598
Thrustmaster T-818
Thrustmaster T248
Thrustmaster T300 (Legacy)
Thrustmaster TX (Legacy)
Thrustmaster T-GT (Legacy)
Thrustmaster T-GT II
Thrustmaster TS-PC (Legacy)
Turtle Beach VelocityOne
Turtle Beach KD3
VNM Premier
VRS Racing DFP15
Legacy = No longer in production

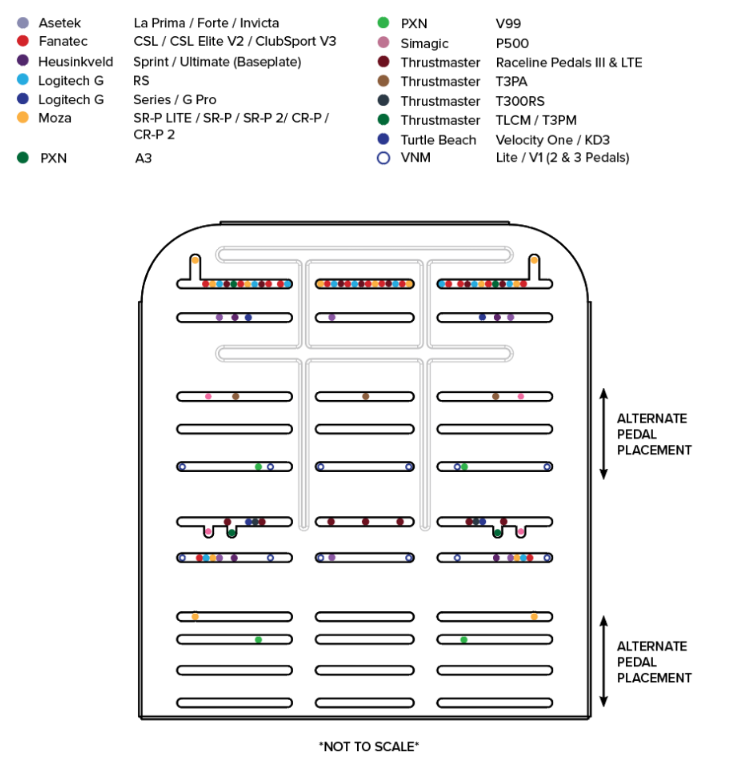

Pedals:

Asetek La Prima / Forte / Invicta
Fanatec CSL
Fanatec CSL Elite V2
Fanatec ClubSport V3
Heusinkveld Sprint
Heusinkveld Ultimate
Logitech G RS
Logitech G Series
Logitech G G Pro
Moza SR-P Lite
Moza SR-P
Moza SR-P 2
Moza CR-P
Moza CR-P 2
PXN A3
PXN V99
Simagic P500
Thrustmaster Raceline Pedals III
Thrustmaster Raceline Pedals LTE
Thrustmaster T3PA
Thrustmaster T300RS
Thrustmaster TLCM
Thrustmaster T3PM
Turtle Beach VelocityOne
Turtle Beach KD3
VNM Lite
VNM V1 (2 Pedals)
VNM V1 (3 Pedals)

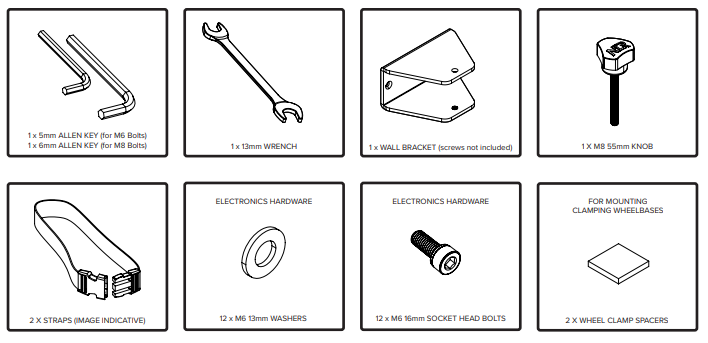

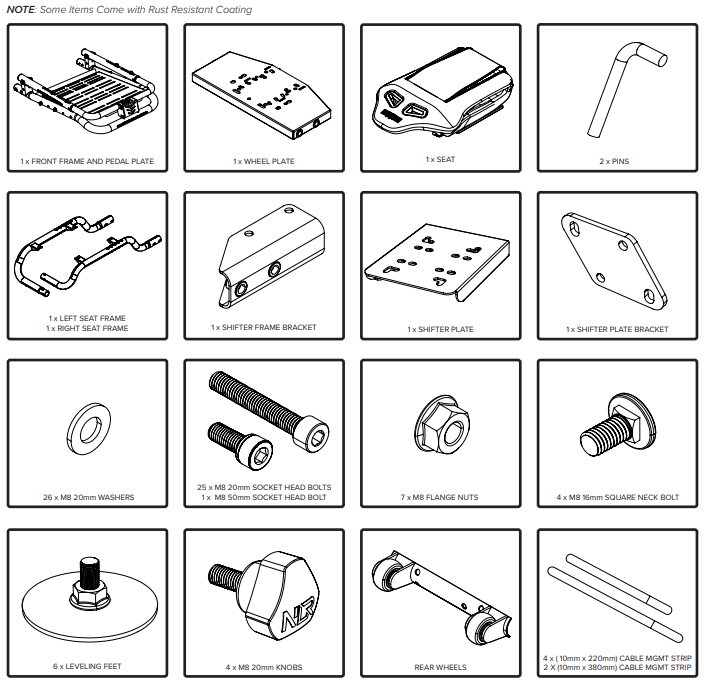

WHAT'S IN THE BOX

Instructions Guide & Video Links:

Instructions guide: [PDF Version]
Assembly Video:
