Product Overview
The ES1 Elite Sim Racing Seat is a fixed-back, competition-style seat designed for maximum rigidity, durability, and support. It is best suited for high-end sim racing rigs where a fully locked-in racing posture is preferred. The ES1 is built with reinforced fiberglass, cold-molded foam, and premium suede for both comfort and grip.
While it does not recline or include sliders, the seat’s structure and racing-inspired geometry offer full lateral and lumbar support under high braking and G-load scenarios common in sim racing setups.
Available Variant:

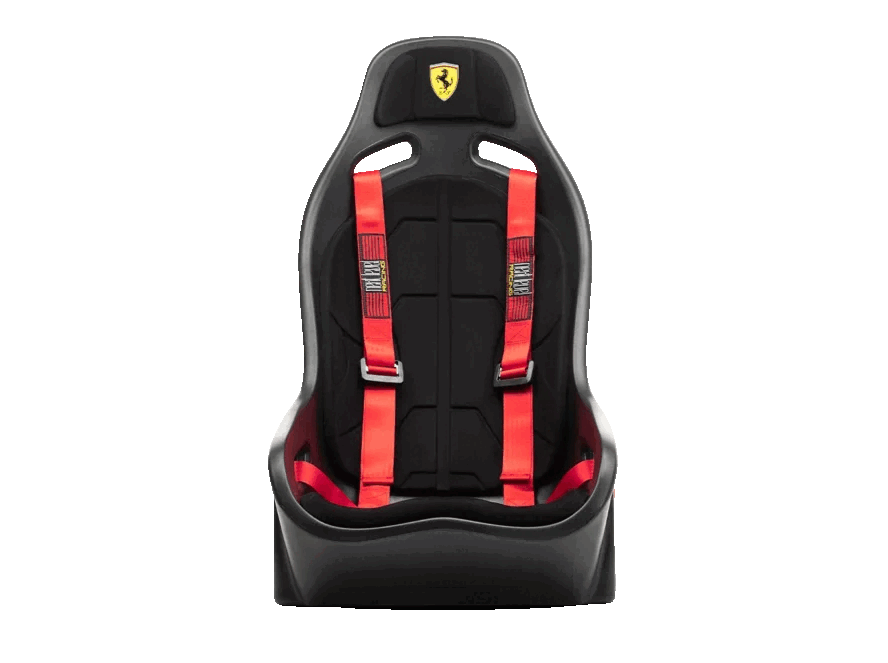

- Premium Suede Scuderia Ferrari Edition – Combines a firm core with a soft-touch exterior for balance between performance and style including our exclusive partner Ferrari branding on the seat.
Leading Features
- After extensive research on ergonomics and strength, the ES1 Seat focuses on giving you an advantage over your competition. Get the comfort for long endurance races, the support for precision braking, and the strength for users with heavy load pedals. By introducing a fixed-back single–piece seat, the ES1 Seat solves potential flex otherwise experienced with conventional reclining seats. By using a contour–shaped seat, all users can enjoy a fitted feel with maximum comfort.
- Manufactured using a custom-tooled 5 axis rotational molding process to ensure material consistency, providing maximum rigidity and strength. By using premium suede covering, it provides durability and added grip to meet the demand of every sim racer. Premium brass mounting hardware locations create versatility for various mounting configurations including Buttkickers, seat belts, and other haptic technologies.
Specifications
| Feature | Specification |
| Dimensions (L×W×H) | 74 × 50.5 × 85 cm |
| Seat Type | Fixed-back Bucket Seat |
| Upholstery | Premium Suede |
| Structure | Fiberglass-Reinforced Polymer |
| Weight Capacity | Up to 250 kg |
| Waist Compatibility | Up to 42″ (106 cm) |
| Mounting Type | Side Mounting (Requires Brackets) |

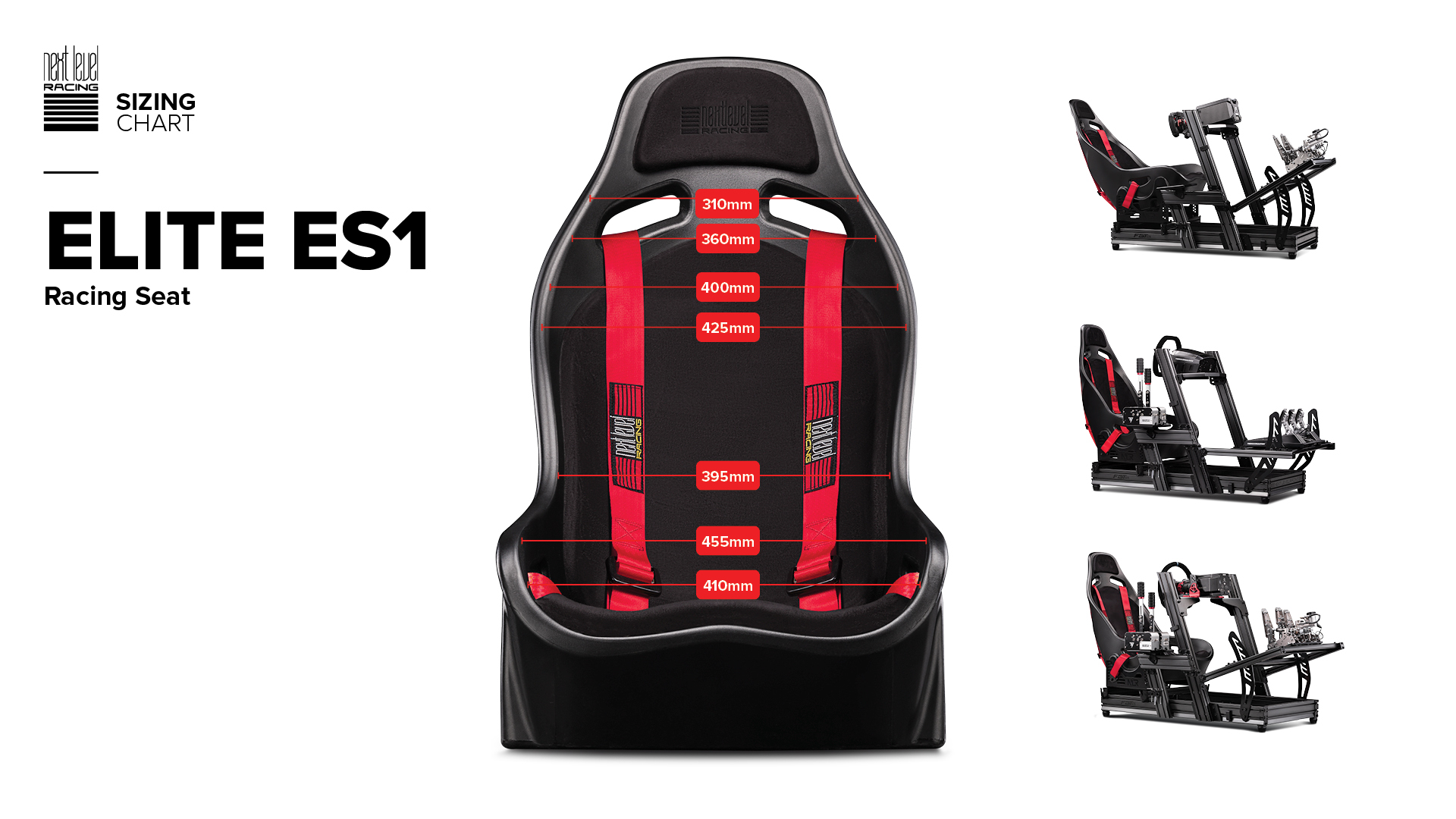

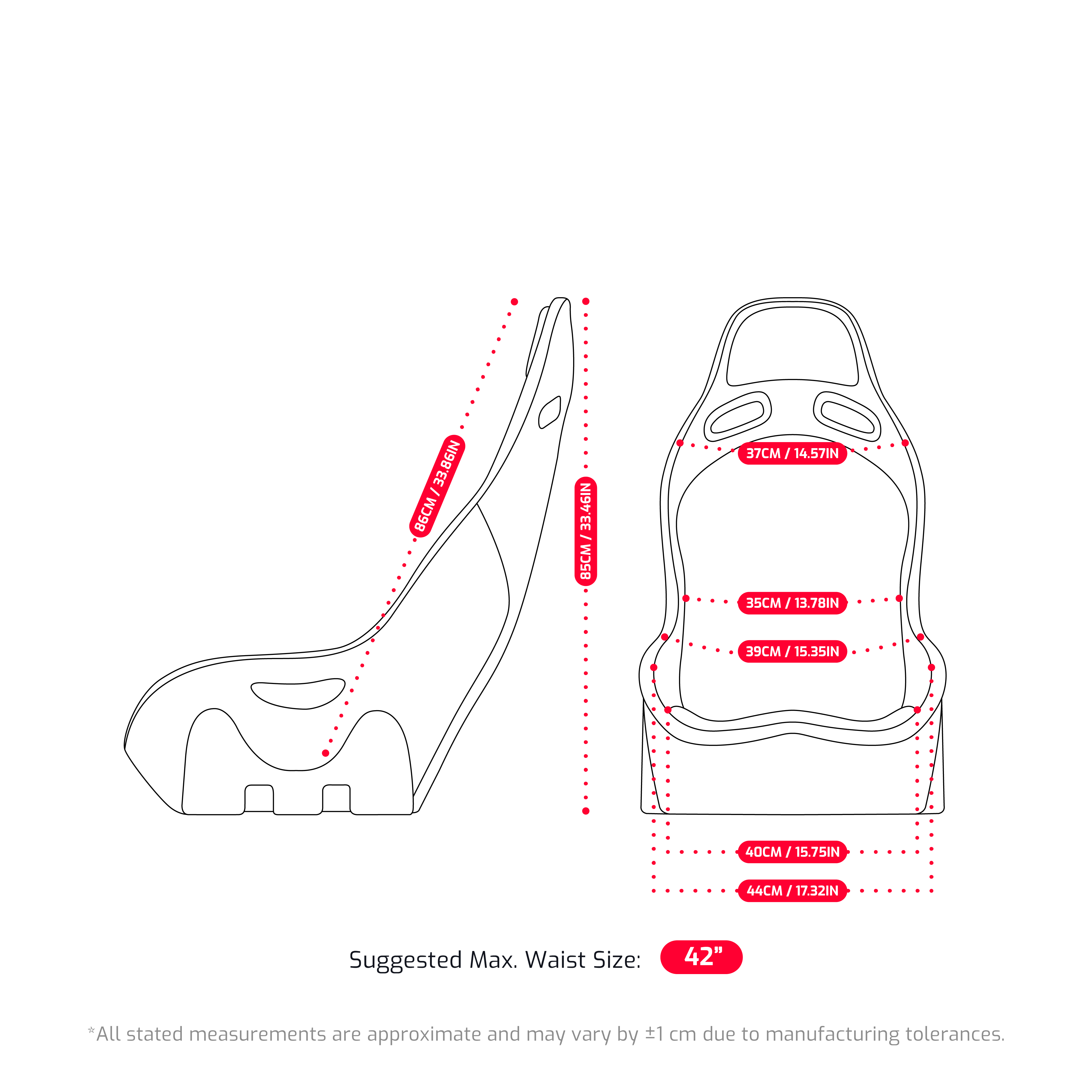

Dimensions
- Not adjustable, fixed-back bucket seat
- Compatible with side-mount seat brackets for angle mounting
Frequently Asked Questions (FAQ)
Q: Does this seat recline?
A: No, it is a fixed racing seat designed for rigidity and support. If you are looking for a reclining sim racing seat, we highly recommend you explore the Next Level Racing PRS, and ERS series of sim racing seats.
Q: Is the ES1 Seat compatible with all Next Level Racing cockpits?
A: The ES1 Seat is compatible with a wide range of Next Level Racing cockpits, including the Elite Series Cockpits**, when using the included side-mount seat brackets. A full breakdown of compatibility can be seen in the table below.
**ES1 Compatibility requires the Universal Seat Brackets for GTElite Lite (Purchased Separately)
Q: Is this suitable for endurance racing?
A: Yes - its ergonomic contour and premium padding reduce pressure during long use and used in many sim racing esport teams/events globally.
Compatibility
| Cockpit Model | Compatibility |
| GTElite | ✅ Out of the box (with included side brackets) |
| F-GT Elite Lite / F-GT Elite / Elite 160 | ✅ Out of the box (with included side brackets) |
| GTElite Lite / GTtrack | ⚠ Requires Universal Seat Brackets |
| F-GT | ⚠ Requires Universal Seat Brackets |
| GTRacer 2.0 | ❌ Not compatible |
| Go Kart Plus | ❌ Not compatible |
| Victory | ❌ Not compatible |
Legend:
✅ Compatible out of the box (with seat brackets)
⚠ Requires Next Level Racing’s Universal Seat Brackets (Purchased Separately)
❌ Not compatible
Troubleshooting
Q: Side mount not aligning
A: Ensure side brackets are installed in correct holes (multiple height options).
Instructions Guide & Video Links
- PDF Manual: Download ES1 Instruction Manual
- Assembly Video: Currently not available
Product Comparison
| Feature | ES1 | ES2 | EFS |
| Max Waist Size | Up to 42″ (106 cm) | Up to 42″ (106 cm) | Up to 40 inches (102 cm) |
| Fit Style | Bucket | Bucket | Bucket/Formula |
| Weight Capacity | Up to 250 kg | Up to 150 kg | Up to 250 kg |
| Upholstery | Premium Suede | High density foam and PU Leather/Suede cushioning | Thermo-formed EVA Foam with premium suede finish |
| Mounting Type | Side Mounting (Requires Brackets) | Side Mounting (Requires Brackets) | Side Mounting (Brackets included) |
