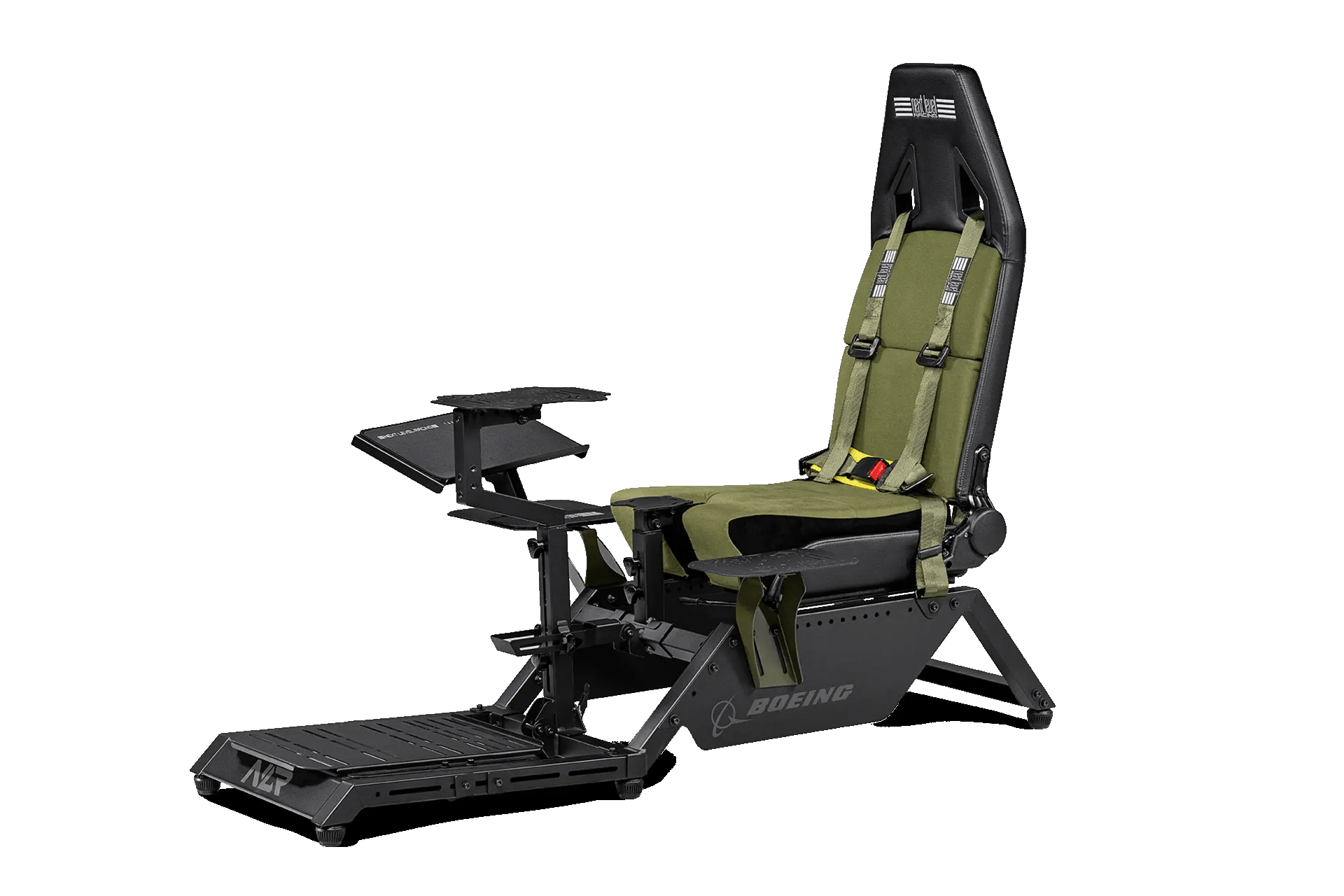

Flight Simulator Boeing Military Edition (NLR-S028)

Product Overview:

Takes it to the skies with the Next Level Racing® Flight Simulator Boeing Military Edition, our first flight dedicated cockpit designed specifically for the aviation community in collaboration with The Boeing Company. Branded in Boeing components like the military inspired green canvas seat covering and Military Green highlights, the Boeing community can now interact with a flight a cockpit that is inspired by a military Boeing flight cockpit. The Next Level Racing® Flight Boeing Military Edition Cockpit offers a wide range of configurations to suit different class of flight, including Combat, Space, Commercial, and General Aviation. The Flight Simulator Boeing Military Edition Cockpit is compatible with a wide range of electronics such as yokes, joysticks, and throttles for all major brands. Staying true to the military cockpit, the joystick can be directly attached between the user’s legs for an authentic combat flight experience. With a growing ecosystem of flight accessories by Next Level Racing®, the flight community can expect a solution that is suited for flight simulation. The Next Level Racing® Flight Simulator Boeing Military Cockpit is designed to be compatible with the Thrustmaster® TCA Yoke Pack Boeing Edition directly mounted to the cockpit with a true positioning of the peripheral for the most realistic flight simulation experience.

Available Variants:

Flight Simulator – Boeing Military Edition (this product)
A counterpart Flight Simulator – Boeing Commercial Edition
The standard Next Level Racing Flight Simulator cockpit (non‑Boeing versions)
These variants are part of Next Level Racing’s collaboration with Boeing, offering both military and commercial aesthetics.

Key Features:

Official Boeing‑licensed design with military‑themed canvas seat covers and green highlights.
Accommodates multiple flight genres: Combat (with center stick), Space, Commercial, and General Aviation.
Realistic combat ergonomics: Center stick (HOTAS) can be mounted between the legs using a seat cut‑out—reflecting true fighter cockpit layout.
Comfort features: High‑density foam seat, PU leather plus canvas for breathability and durability; double‑recliner design provides ergonomic flexibility and strength. Seat is positioned higher for ergonomic access to rudder controls.
Peripheral compatibility: Works with yokes, joysticks, throttles, rudders from all major brands, plus direct mounting compatibility with the Thrustmaster® TCA Yoke Pack Boeing Edition.

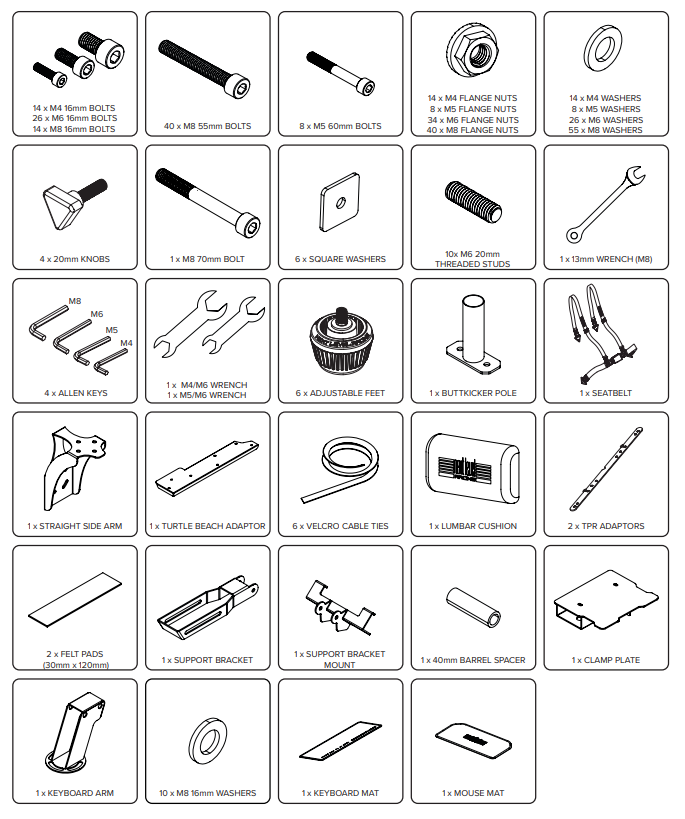

Included accessories: Buttkicker® adapter, four‑point harness, lumbar support, keyboard & mouse tray, and various adapter plates to support different flight setups.
Motion platform ready: Compatible with Next Level Racing’s Motion Plus Platform Adaptor (sold separately) for physical movement.

Specifications:

Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
Supported Max Weight: 150 kg or 330 lbs
Product Dimensions: (L) 153 cm x (W) 99 cm or (H) 122cm /(L) 60.2 inches x W 39 inches x H 48 inches)
Box Dimensions: 100 cm (L) X 54cm (W) X 48cm (H)/ 39.4 inches(L) x 21.3 inches (W) x 18.9 inches(H)
Product Weight: 49.5kg or 109.1 lbs
Boxed Weight – 56.3 kg or 124.1 lbs
Part Number – NLR-S028

Adjustments:


The cockpit is highly adjustable to fit users of varying sizes and preferred flight setups:

Side arms: 300 mm lateral adjustment, 75 mm height adjustment for ideal yoke placement.
Centre pole: 150 mm height adjustment for yoke or keyboard tray positioning.
HOTAS centre pole: 30 mm height adjustment for center‑stick ergonomics.
Flight arm & rudder plate: Up to 21.5° angle adjustment for tuning controls layout.
Seat: Equipped with a slide mechanism and reclining backrest for customizable distance and angle adjustments.

FAQ:

What type of flight simulation is this cockpit ideal for?
The Boeing Military Edition is purpose-built for combat and tactical aviation, with a seat cutout for center-mounted HOTAS setups to deliver a true fighter jet experience. However, it’s also highly adaptable and can be used for space, general aviation, and commercial flight simulation, making it a versatile all-in-one flight solution.
What flight hardware is it compatible with?
It supports a wide range of peripherals, including yokes, joysticks, throttles, and rudder pedals from brands like Thrustmaster, Moza, Logitech, Saitek, Honeycomb, Virtual Fly, and Crosswind.
What materials and design features are included?
It features a military green canvas seat, high-density foam padding, and a robust double recliner mechanism. Official Boeing branding is included on the headrest and side panels.
Is the cockpit adjustable for different user preferences?
Yes, it offers flexible adjustments for seat recline, flight arms, center-mounted devices, and rudder plate positioning to accommodate various pilot preferences and hardware setups.

Compatibility:
