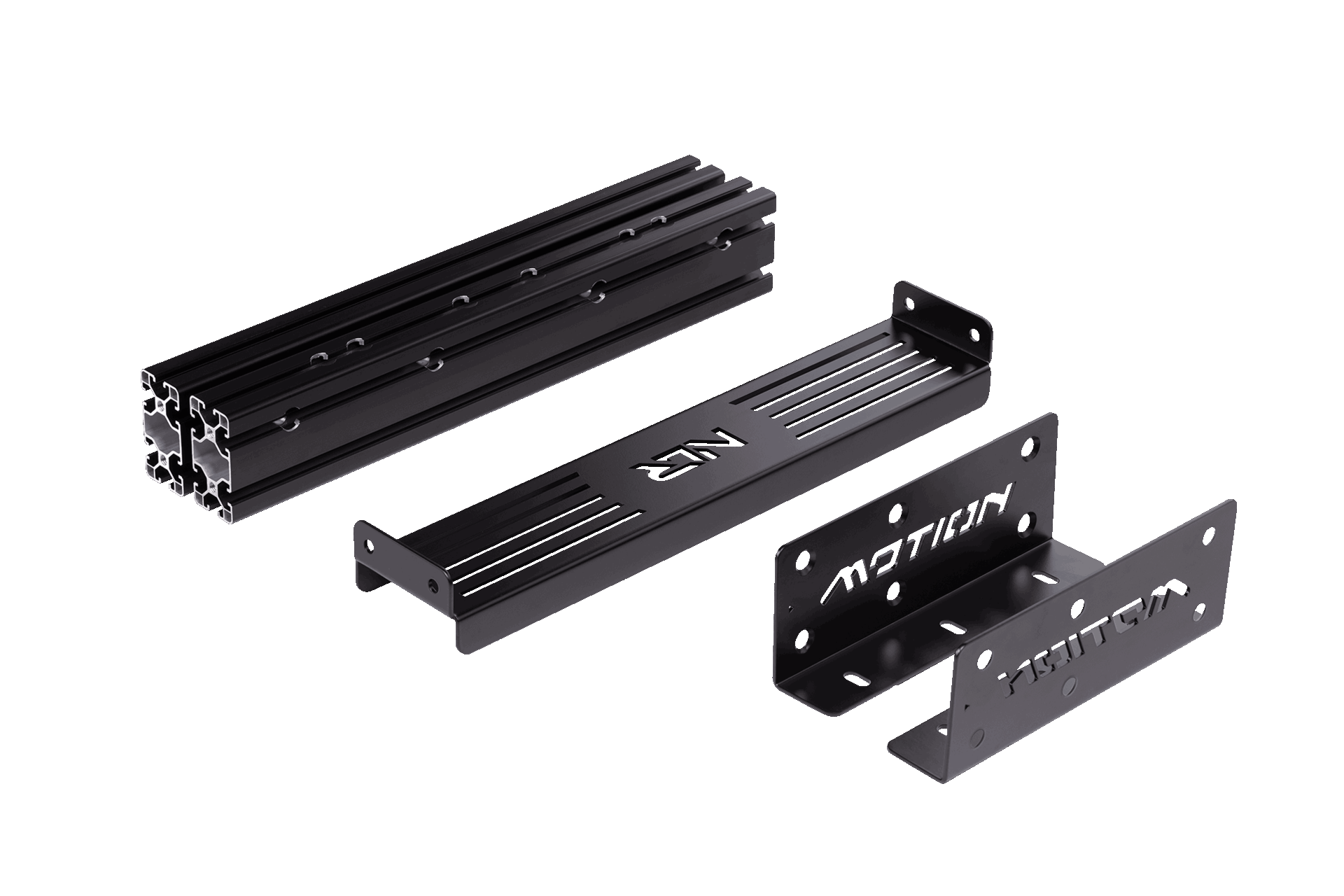

Next Level Racing – Elite Motion Adaptor Upgrade Kit:
Product Overview:
The Next Level Racing® Elite Motion Adaptor Upgrade Kit is a sim racer’s step towards full immersion, making the Elite* cockpit compatible with the Next Level Racing® Motion V3 and Traction Plus Platform. A combination of precision CNC-machining and laser cutting manufacturing process, as well as anodised and powder coat finish, gives the Elite Motion Adaptor Upgrade Kit the same level of quality and rigidity as expected from our Elite range of simulation products.
**Please check Motion Products to see if your cockpit requires the Elite Motion Adaptor Upgrade Kit as not all Elite cockpits require this add-on
Leading Features:
-
For racers that desire even more immersion for racing and flight applications, the Elite Motion Adaptor Upgrade Kit transforms the Elite series cockpits into a full motion-compatible cockpit, compatible with Next Level Racing® Motion V3 and Traction Plus Platform. Take the next step up towards the ultimate motion experience, making the immersive simulation experience even better. **Note that you do not need the Motion Adaptor Kit when using the Next Level Racing ® Motion Plus Platform.
- Built without compromise, the Elite Motion Adaptor offers users rock-solid support for even the strongest motion profiles. Our cutting-edge pre-machined and laser cutting manufacturing process has meant that flex is non-existent with the Elite Motion Adaptor Upgrade Kit. In addition, the high-quality powder-coated finish of the steel components and custom anodised aluminium finish results in a premium finish.
Specifications:
- Supported Height: 120 cm to 195 cm / 4ft to 6.4 ft
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions Motion Platform V3 Adaptor (25cm x 5cm x 9.5cm or 9.8inches x 1.9inches x 3.7inches),
- Traction Plus Platforms Dimension (8cm x 4cm x 48.4cm or 3.1inches x 1.6inches x 1.2inches)
- Boxed Dimensions: 50.5cm x 22cm x 12.5cm or 19.9inches x 8.7inches x 4.9inches)
- Boxed Weight: 6.5kg or 14.3 lbs
FAQ:
Q: What is the purpose of the Elite Motion Adaptor Upgrade Kit?
This kit enables the GTElite cockpit to be compatible with Next Level Racing® Motion Platform V3 and Traction Plus Platform, transforming it into a motion-capable simulator.
Q: Which cockpits are compatible with this upgrade kit?
The kit is designed for the Next Level Racing® Elite Series cockpits, including the GTElite and GTElite Lite. Note that not all Elite cockpits require this add-on; please check specific product requirements.
Q: What materials are used in the construction of the kit?
The components are constructed from premium carbon steel and aluminium extrusion, finished with high-quality powder coating and anodized aluminium parts for durability and aesthetics.
Q: Is the kit compatible with the Motion Plus Platform?
No, the GTElite Motion Adaptor Upgrade Kit is not required when using the Next Level Racing® Motion Plus Platform. It is specifically designed for compatibility with the Motion Platform V3 and Traction Plus Platform.
Compatibility:
Designed to enable Motion V3 Compatibility with the below Next Level Racing Cockpits:
Designed to enable Traction Plus Compatibility with the below Next Level Racing Cockpits:

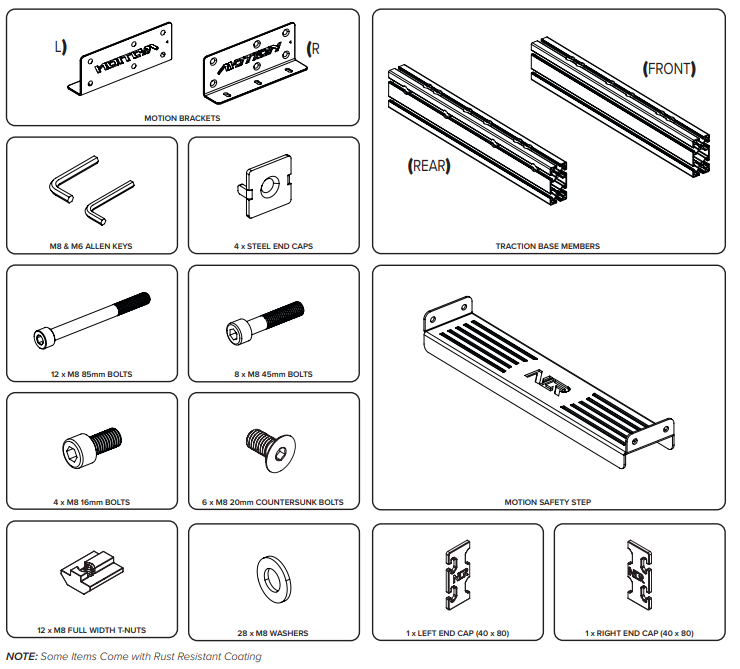

WHAT'S IN THE BOX
Troubleshooting Highlights
-
Adapter not lining up with cockpit base extrusion channels:
When installing the Motion V3 Platform with the included “L-Brackets” do not tighten these fully into the Motion V3 Platform, then align the brackets with the T-Nuts in the top channel and tighten partially. Once tightened, gradually tighten all bolts simultaneously. -
V3 Platform sits to high:
If you find the Motion V3 Platform sitting too high; please follow step 13a in the Instruction Manual, this lowers the V3 by inverting the “L-Brackets”.
Instructions Guide & Video Links:
- Instructions guide: [PDF Version]
-
Assembly Video:
