Product Overview:

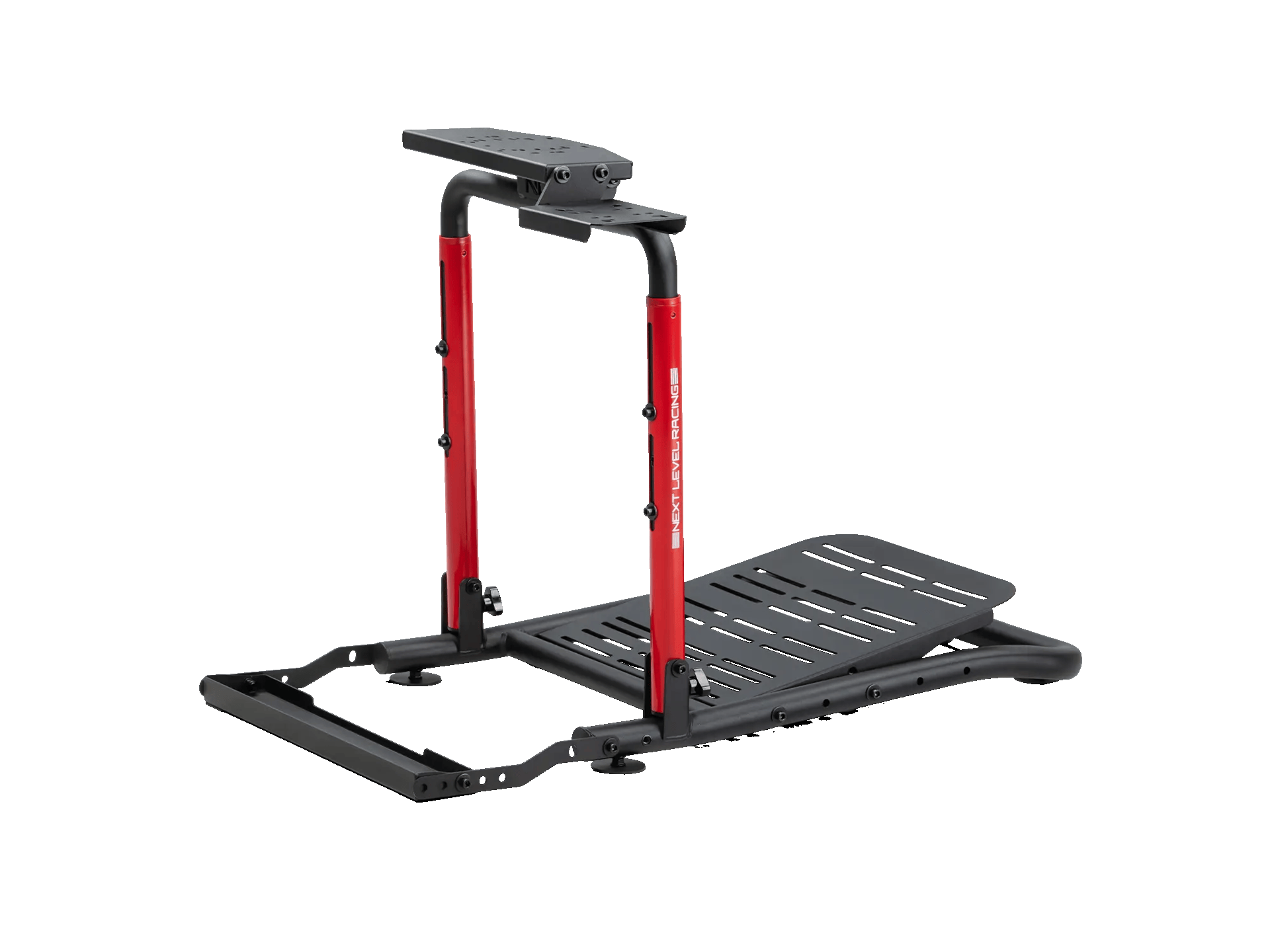

Introducing the Next Level Racing® Wheel Stand Lite 2.0, an affordable and compact solution for sim racing enthusiasts who need to maximize space without compromising on quality. This upgraded version, shaped by valuable community feedback, offers enhanced adjustability and stability, making it the ideal choice for racers seeking a high-performance setup in a smaller footprint. Whether you’re just starting or looking for a portable option, the Wheel Stand Lite 2.0 combines convenience, durability, and versatility, all at an accessible price point.
Leading Features:
- The Next Level Racing® Wheel Stand Lite 2.0 is designed to meet the diverse needs of sim racers, offering extensive adjustment options to create your ideal driving environment. Whether it's adjusting the height, distance, or angle of your setup, this stand allows you to customize every detail, ensuring you find the perfect position for maximum comfort during extended racing sessions. The versatile pedal plate slots further enhance your control, providing both horizontal and angle adjustments to fine-tune your setup for an immersive and tailored racing experience.
- Stability is crucial during intense races, and the Wheel Stand Lite 2.0 doesn't disappoint. The innovative Gaming Chair Cradle ensures your seat stays firmly in place, even under heavy braking, eliminating the frustration of unwanted seat movement. Additionally, the stand is compatible with a wide range of entry-level sim racing wheels, pedals, and shifters, supporting up to 10 N.M. wheelbases. Most wheels, pedals, and shifters from leading brands such as Logitech, Moza Racing, Thrustmaster, and Fanatec can be hard-mounted to the Wheel Stand Lite 2.0, ensuring a secure and stable setup. Whether you're a new or a seasoned racer, this stand is designed to support your gear and enhance your racing experience.
- The Wheel Stand Lite 2.0 is not just about performance; it's about convenience too. This stand arrives mostly assembled, allowing you to quickly install your wheel, shifter plates, and cradle, and start racing in no time. Its foldable design makes storage easy and simple, perfect for those with limited space. Plus, with the option to upgrade to a full cockpit by adding the Wheel Stand Lite 2.0 Victory Seat Add-on*, this wheel stand grows with your racing journey, offering a complete solution for any sim racing enthusiast.
Specifications:
- Supported Height: 150 -210 cm or 4ft 11inches – 6ft 9 inches
- Supported Max Weight: 30 kg or 66.1 lbs (Electronics only)
- Product Dimensions: 73 cm (L) x 57 cm (W) x 67-75 cm (H) /28.7 inches (L) x 22.4 inches (W) x 26.4-29.5 inches (H)
- Box Dimensions: 76 cm (L) X 54.5cm (W) X 15.5 cm (H)/ 29.9 inches(L) x 21.5 inches (W) x 6.1 inches(H)
- Product Weight: 11.7 kg or 25.8 lbs
- Boxed Weight: 14.7 kg or 32.4 lbs
Adjustability:
- Height, distance, and angle adjustments for both the wheel and pedal plates allow users to dial in their ideal seating and wheel alignment.
- Pedal plate supports both horizontal and tilt adjustments.
- Shifter mount offers lateral versatility, mounting either left or right to suit user preferences.
- Chair cradle locks down your racing seat during intense sessions to eliminate movement.
Q: What wheel and pedal types is this stand ideal for?
The Wheel Stand Lite 2.0 is suitable for entry-level wheels and pedals from brands like Logitech, Thrustmaster, and Fanatec, supporting up to 10 Nm of torque.
Q: Is the stand adjustable for different user preferences?
Yes, it offers height, distance, and angle adjustments for the wheel and pedal plates, as well as a gear shifter mount that can be positioned on either side.
Q: Is the stand foldable for storage?
Yes, the Wheel Stand Lite 2.0 features a quick and easy foldable design, making it convenient for users with limited space.
Q: Can it be upgraded to a full cockpit?
Yes, by adding the Victory Seat Add-On, the stand can be transformed into a full racing cockpit.
Troubleshooting
Q: Stand feels wobbly or loose. What should I check?
- Ensure all folding-axis screws and bolts are properly tightened. Over time or after shipping, they may loosen.
Q: Shifter plate is too flexible or poorly positioned.
- Some users note limited stiffness or awkward height placement for shifters—this may require slight realignment or acceptance of minor flex.
Q: Feeling vibrations with higher torque wheels.
- Vibrations can intensify at higher heights or with stiffer wheelbases; consider limiting height adjustments or reducing high torque wheelbases to a lower output.
Product Comparison
| Feature | Wheel Stand Lite | Wheel Stand 2.0 | Wheel Stand Lite 2.0 |
|---|---|---|---|
| Build Quality | Powder-coated steel | Robotic-cut carbon steel | Powder-coated round steel |
| Stand Additions | None | Chair cradle | Chair cradle |
| Shifter/Handbrake Option | Yes | Yes | Yes |
| Upgrade Path | Limited | Full cockpit via GTSeat Add-on | Full cockpit via Victory Seat Add-on |
| Adjustability | Basic | Extensive (angle, height, fold) | Extensive (angle, height, fold) |
Compatibility:
- Next Level Racing® Round Tube Freestanding Single and Triple Monitor Stand
- Next Level Racing® Freestanding Keyboard and Mouse Tray
- Next Level Racing® Freestanding Single Monitor Stand
- Next Level Racing® Lite Monitor Stand
- Next Level Racing Elite Free Standing Single Monitor Stand - Black Edition
- Next Level Racing Elite Free Standing Triple Monitor Stand - Black Edition
- Next Level Racing Elite Free Standing Quad Monitor Stand - Black Edition
- Next Level Racing® Floor Mat
- Next Level Racing® Premium XL Floor Mat
- Next Level Racing® Wheel Stand Lite 2.0 Victory Seat Add-on
- Next Level Racing® Universal Handbrake Plate
- Next Level Racing® Lockable Castor Wheels
Wheelbases:
MOZA R3 / R5 / R9
FANATEC CSL DD 5NM / CSL DD 8NM
Simagic Alpha Mini
Cammus C5
Logitech G25 / G27 / G29 / G920 /G923
Thrustmaster T500 RS / TGT / TGT-II / TSPC / TX / T248 / T598 / T81
Turtle Beach VelocityOne KD3
Turtle Beach VelocityOne Race
Asetek La Prima
CAN MOUNT BUT NOT RECOMMENDED
Moza R16
Moza R21
Moza R21 Ultra
Moza R25 Ultra
Asetek Forte
Asetek Invicta
Simucube (With bottom mounting bracket)
Fanatec DD1 / DD2
Simagic Alpha

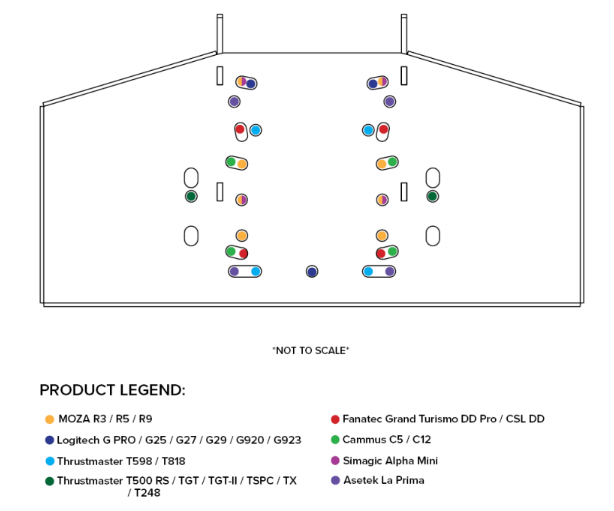

Mounting Diagram:
Shifters/Handbrakes:
BJ Sim Handbrake
Fanatec Clubsport Shifter
Logitech G29/923 Shifter
Thrustmaster TH8A Shifter
Pedals:
Fanatec CSL
Fanatec CSL Elite
Fanatec ClubSport V3
Thrustmaster T3PA
Thrustmaster T300RS
Thrustmaster TCLM
Moza R5 Pedals
Moza Racing CRP
Moza Racing SR-P
Logitech G25
Logitech G27
Logitech G29
Logitech G PRO

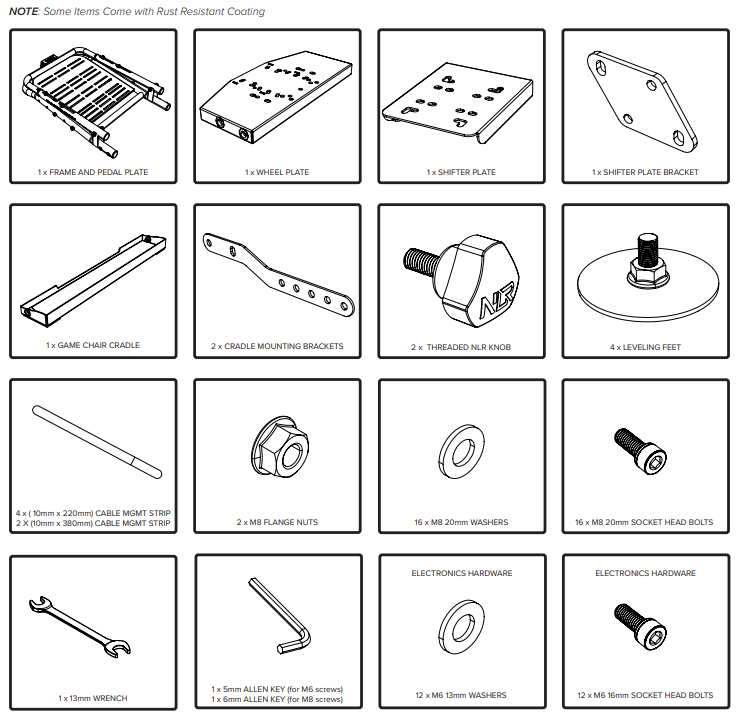

WHAT'S IN THE BOX
Instructions Guide & Video Links:
- Instructions guide: [PDF Version]
-
Assembly Video:
