Product Overview:

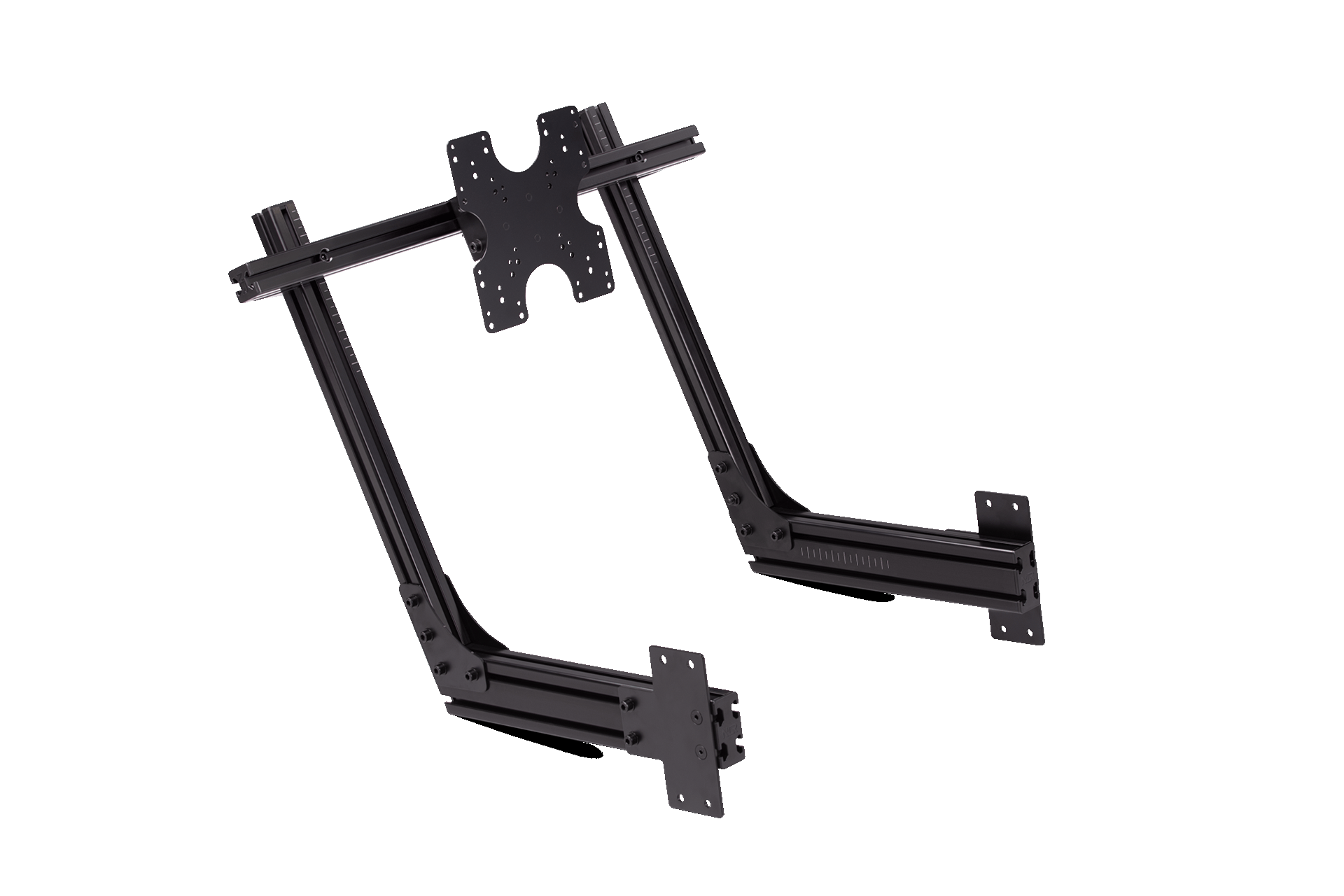

The Next Level Racing® Elite Direct Monitor Mount- Black Edition, is the perfect solution for the serious sim racer to create a full immersive racing experience. The Elite Direct Monitor Mount will offer drivers the perfect monitor placement, completing the ultimate racing simulator setup. With design and aesthetic in mind, the Elite Direct Monitor Mount will create an all-in-one racing station for users to fully immerse in simulation. *If you are considering adding the Motion Plat Plus or Traction Plus Platform products, we recommend exploring one of our Elite Free Standing Monitor Solutions as the motion experience during simulation could affect your Monitors/TVs.
Leading Features:
-
The Elite Direct Monitor Mount increases the racing immersion even further with support for attaching screens to the cockpit directly. Designed and engineered to support single monitors from 27”-43” flat screens and single Ultra-wide monitors up to 49”. It features wide freedom of adjustment (200mm Vertical, 239mm Horizontal, and 18 degrees Tilt) and fine-tuning options to complete the ultimate immersion. This attach-on Monitor Stand offers three layers of height adjustment, with VESA mounts providing rotational adjustment. The unique design of the VESA mount also provides tilt adjustment to find that perfect field of view
- The Elite Direct Monitor Mount – Black Edition carries the same features like the premium anodised black finish as the rest of the Next Level Racing® GTElite cockpit, completing the perfect Elite Series cockpit setup. With Laser alignment, electroplated hardware, custom anodising, and pre-drilled holes for ease of assembly, users can expect the same level of quality seen across the Elite category.
Specifications:
- Construction Materials: Black anodized aluminum extrusion for a premium finish
- Angle Adjustment Range: 18° Tilt available
- Vertical Adjustment Range: 200mm
- Adjustable Parameters: Height, horizontal, vertical and tilt
- Product Dimensions: 44.3 cm (L) x 75.8 cm (W) x 91.3 cm (H) 17.4 inches (L) x 29.8 inches (W) x 35.9 inches (H)
- Boxed Dimensions: 83.5 cm (L) X 29 cm (W) X 21.7 cm (H) 32.9 inches (L) x 11.4 inches (W) x 12.9 inches (H)
- Boxed Weight: GW: 9.86 kg 21.6 lbs
FAQ:
Q: What monitor sizes are supported?
It supports flat screens from 27” to 43” and ultrawide curved monitors up to 49” with a compatible VESA mount.
Q: Which cockpits is it compatible with?
This monitor mount is designed to directly integrate with the GTElite and F-GT Elite cockpits, eliminating the need for a separate stand.
Q: Can I adjust the position of the monitor?
Yes, it allows for height, tilt, and depth adjustments to achieve the perfect field of view from your seating position.
Q: Does it support curved and ultrawide monitors?
Yes, it supports curved and ultrawide monitors up to 49” as long as they have a compatible VESA mount.
Compatibility:
Next Level Racing® Elite Cockpits*
**The Elite Direct Monitor Mount - Black Edition is compatible with all NLR Elite Cockpits, though keep in mind the colour difference for the extrusion's finish.

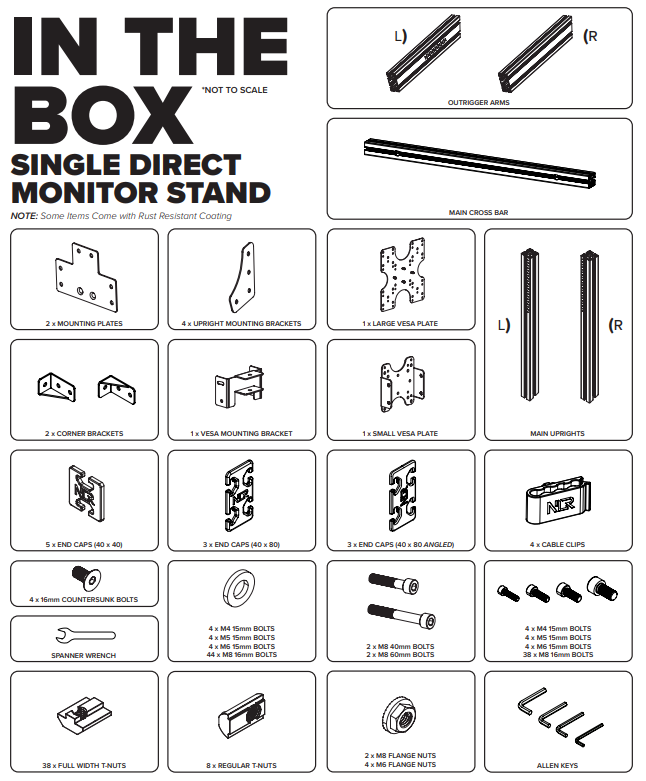

Instructions Guide & Video Links:
- Instructions guide: [PDF Version]
-
Assembly Video:
